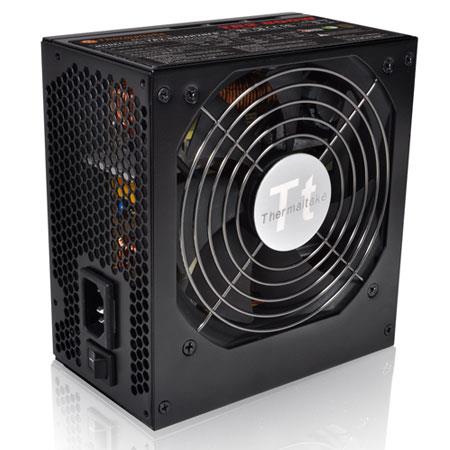

Power Supply > TR2 > TR2 600W
- ATX 12V V2.3 enables most reliable and robust power delivery.
- Stable 600W continuous output (peak power 720W) @ 40 ? operating environment.
- Robust and dedicated single +12V output provides superior performance under all types of system loading.
- 80 PLUS Bronze Certified: with 82-88% efficiency @ 20-100% load under real world load conditions.
- Double-forward switching circuitry offers low power loss and high reliability.
- Universal AC input 100V~240V automatically scans and detects the correct voltage.
- High quality 105 ? Japanese main capacitor provide uncompromised performance and reliability.
- 99% Active Power Factor Correction provides clean and reliable power to your system.
- Ultra-silent operation with intelligent 12cm cooling fan speed control.
- Intel & AMD CPU compliant.
- Nvidia & ATI/AMD graphic card compatible.
- Dimension: 150mm(W)x86mm(H)x140mm(L).
- High reliability: MTBF>100,000 hours.
- Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.
- Safety / EMI : UL/ CUL, VDE, CE, FCC, CB, GOST and BSMI certified.
 |
High Quality 105°C Japanese Electrolytic Capacitor
105°C Japanese main capacitor provides uncompromised performance and reliability. |
 |
Industrial Grade Protection
Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections |
 |
Ultra Quiet 12cm Fan
New TR2 series adopt 12cm cooling fan with intelligent RPM control guarantees cool performance and silent operation. |
 |
High Efficiency Circuit Design
Maximum efficiency up to 88% under wide load range. |
 |
80 Plus Bronze Certified
New TR2 Series saves energy through its high energy efficiency of up to 88% and is 80 PLUSR Bronze certified
|
ErP Ready
New TR2 Series fulfils the EU guideline for ErP (Energy-related Products) that are scheduled to apply starting in 2010.
Supports Energy Star 5.0* energy standard:
New TR2 Series is suitable for use in Energy Star-compatible computers.
Supports Intel Deep Power Down C6 Status:
New TR2 Series helps your PC system operate more power efficiently.
Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure TR2 meets WEEE & RoHS requirements.
|
TR-600P
|
|
AC INPUT |
Input Voltage: 100V-240V~
Input Current: 9.5A - 4.5A
Frequency: 50Hz-60Hz
|
|
DC OUTPUT |
+5V |
+3.3V |
+12V |
-12V |
+5Vsb |
|
Max Output Current |
25A |
25A |
50A |
0.8A |
3.0A |
|
Max Output Power |
140W |
600W |
9.6W |
15W |
|
Continuous Power
|
600W |
|
|
Voltage Source
|
Over Current Protection
|
Over Voltage Protection
|
Under Voltage Protection
|
|
Protection Point (Max.)
|
Protection Point
|
|
+3.3V
|
60A
|
3.76V~4.8V
|
2.0V~2.4V
|
|
+5V
|
48A |
5.6V~7.0V
|
3.3V~3.7V
|
|
+12V
|
80A
|
13.0V~16.5V
|
8.5V~9.5V
|
|
Short Circuit Protection: Activated when any DC rails short circuited.
|
|
Over Power Protection: Protection at 110%~130% full load.
|
|
P/N |
|
|
|
|
|
|
 |
|
FDD
(4PIN)
|
|
|
TR-600P |
1
|
1
|
1
|
1
|
6
|
6
|
1
|
|
|
Model |
Connector Type |
Connectors & Cable length |
|
600W |
24pin |
1 x 20+4pin Main connector(550mm) |
|
ATX 12V 4+4pin |
1 x ATX 12V 4+4pin Connector (550mm) |
|
PCI-E 6+2pin & 6pin |
1 x 6+2pin & 1 x 6pin PCI-E connector (500mm + 150mm) |
|
Molex & FDD |
3 x Peripheral & 1 x FDD connectors (500mm + 150mm + 150mm + 150mm)
3 x Peripheral connectors (500mm + 150mm + 150mm) |
|
SATA |
3 x S-ATA connectors (500mm + 150mm + 150mm)
3 x S-ATA connectors (500mm + 150mm + 150mm) |
|
|
|
P/N |
TR-600P |
|
Model |
TR2-600AH2NFB |
|
Type |
Intel ATX 12V 2.3 |
|
Max. Output Capacity |
600W |
|
Peak Output Capacity |
720W |
|
Color |
Black |
|
Dimension ( W / H / D ) |
150mm x 86mm x 140mm |
|
PFC (Power Factor Correction) |
Active PFC |
|
Power Good Signal |
100-500 msec |
|
Hold Up Time |
17msec (minimum) @ full load at 115Vac/ 230Vac input. |
|
Input current |
9.5A – 4.5A |
|
Input Frequency Range |
50 Hz - 60 Hz |
|
Input Voltage |
100 Vac- 240 Vac |
|
Operation Temperature |
+10? to +50? |
|
Operating Humidity |
5% to 95%,non-condensing |
|
Storage Temperature |
-20 ? to +80 ? |
|
Storage Humidity |
5% to 95%, non-condensing |
|
Cooling System |
120mm Fan:2700 R.P.M. ± 10% |
|
Efficiency |
82-85% efficiency @ 20-100% load |
|
MTBF |
100,000 hrs minimum |
|
Safety Approval |
UL/CUL, FCC, TUV, VDE, CE, CB, BSMI, GOST |
