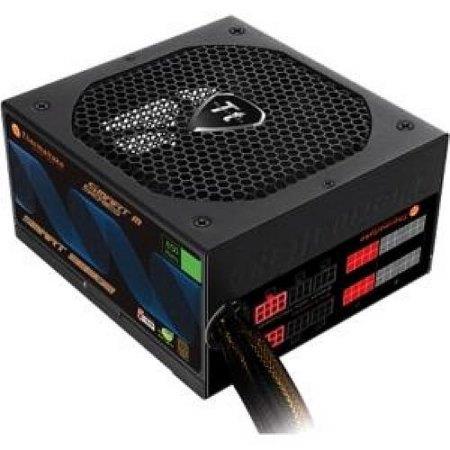

FUENTE 850W THERMALTAKE SMART M SEMI-MOD PSU 80+

Thermaltake - Spain - SMART M850W - SP-850M

Features

Supports the latest ATX 12V V2.3 & EPS 12V standards.
Guaranteed to deliver 850W continuous output @ 40? operating environment.
High current & single +12V rail provides superior performance.
80 PLUS Bronze certified: with 82-88% efficiency @ 20-100% load under real world load conditions.
100% High quality Japanese main capacitor ensure superb performance and reliability.
Solid state capacitors: great stability at higher operating temperatures, frequencies and currents.
Double forward ultra-efficient circuitry design for added power savings.
Synchronous rectification circuit design with DC-DC converter for extremely stable performance and high efficiency.
Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Active PFC with Universal AC input.
Flat, low-profile modular cables allow for easy cable routing and increased airflow.
Supports multiple core high-end graphic cards & CPU. (NVIDIA SLI & ATI CrossFire Ready)
Dimension: 150mm(W)x86mm(H)x160mm(D).
High reliability: MTBF>100,000 hours.
Heavy-duty protection circuitry of Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.
Safety / EMI Approvals: UL/CUL/TUV/CE/FCC and BSMI certification.


Technology Features

High Quality 105°C Japanese Main Capacitor Japanese main capacitor provide uncompromised performance and reliability.  Industrial Grade Protection Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections. Ultra Quiet 14cm Fan SMART Modular Bronze series adopt 14cm cooling fan with intelligent RPM control guarantees cool performance and silent operation. Flat Modular Cables SMART Modular Bronze series adopt flat modular cables not only eliminate cable clutter within the system, but takes up less space for better airflow.

High Efficiency Circuit Design Maximum efficiency up to 88% under wide load range.

Modular Cable Management Cable management design improves internal airflow and reduce clutter.

Fan Speed & Noise Level

ECO Design

80 Plus Bronze Certified SMART Modular Bronze series saves energy through its high energy efficiency of up to 85% and is 80 PLUS Bronze certified.

ErP Ready:
New SMART Series fulfils the EU guideline for ErP (Energy-Related Products) implemented in 2010

Supports Energy Star 5.0* energy standard:
SMART Modular Bronze Series is suitable for use in Energy Star-compatible computers.

Supports Intel Deep Power Down C6 Status:
SMART Modular Bronze Series helps your PC system operate more power efficiently.

Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure SMART Modular series meets WEEE & RoHS requirements.

Output Specification

Connectors Specification

Main Power (24 PIN) ATX 12V  (4+4PIN)   PCI-E (6+2PIN) SATA (5PIN)    Peripheral (4Pin) PATA to FDD (4Pin) 1 1 4 9 6 1

Connector Type Connectors & Cable length 24pin 1 x 24pin Main connector(600mm)    ATX 12V 4+4pin 1 x ATX 12V 4+4pin connector(600mm) PCI-E 6+2pin 2 x PCI-E 6+2pin connectors (500mm + 150mm) 2 x PCI-E 6+2pin connectors (500mm + 150mm) Molex 3 x Peripheral connectors (500mm + 150mm + 150mm)  3 x Peripheral connectors (500mm + 150mm + 150mm) SATA 3 x S-ATA connectors (500mm + 150mm + 150mm)  3 x S-ATA connectors (500mm + 150mm + 150mm)  3 x S-ATA connectors (500mm + 150mm + 150mm) PATA to FDD adapter 1 x PATA to FDD adapter (150mm)

Total Protection
