1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package |
|
2. L3 cache varies with CPU |
|
(Please refer "CPU Support List" for more information.) |
|
|
|
|
|
1. Intel® H310 Express Chipset |
|
|
|
|
|
1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
|
2. Dual channel memory architecture |
|
3. Support for DDR4 2666/2400/2133 MHz memory modules |
|
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
6. Support for Extreme Memory Profile (XMP) memory modules |
|
* To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. |
|
(Please refer "Memory Support List" for more information.) |
|
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
|
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
|
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
|
* Support for HDMI 1.4 version and HDCP 2.2. |
|
Maximum shared memory of 1 GB |
|
|
|
|
|
1. Realtek® ALC887 codec |
|
2. High Definition Audio |
|
3. 2/4/5.1/7.1-channel |
|
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|
|
|
|
|
1. Realtek® GbE LAN chip (10/100/1000 Mbit) |
|
|
|
|
|
1. 1 x PCI Express x16 slot, running at x16 |
|
(The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
|
2. 2 x PCI Express x1 slots |
|
(The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
|
|
|
|
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) |
|
2. 4 x SATA 6Gb/s connectors |
|
|
|
|
|
1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
|
|
|
|
1. 1 x 24-pin ATX main power connector |
|
2. 1 x 4-pin ATX 12V power connector |
|
3. 4 x SATA 6Gb/s connectors |
|
4. 1 x CPU fan header |
|
5. 1 x system fan header |
|
6. 1 x front panel header |
|
7. 1 x front panel audio header |
|
8. 1 x USB 3.1 Gen 1 header |
|
9. 1 x USB 2.0/1.1 header |
|
10. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
|
11. 1 x Clear CMOS jumper |
|
|
|
|
|

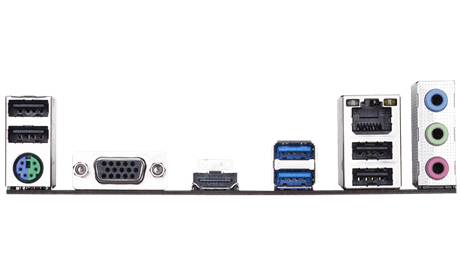

1. 1 x PS/2 keyboard/mouse port |
|
2. 1 x D-Sub port |
|
3. 1 x HDMI port |
|
4. 2 x USB 3.1 Gen 1 ports |
|
5. 4 x USB 2.0/1.1 ports |
|
6. 1 x RJ-45 port |
|
7. 3 x audio jacks |
|
|
|
|
|
1. iTE® I/O Controller Chip |
|
|
|
|
|
1. Voltage detection |
|
2. Temperature detection |
|
3. Fan speed detection |
|
4. Overheating warning |
|
5. Fan fail warning |
|
6. Fan speed control |
|
* Whether the fan speed control function is supported will depend on the cooler you install. |
|
|
|
|
|
1. 1 x 128 Mbit flash |
|
2. Use of licensed AMI UEFI BIOS |
|
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
|
|
|
1. Support for APP Center |
|
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
@BIOS |
|
AutoGreen |
|
Cloud Station |
|
EasyTune |
|
Fast Boot |
|
Game Boost |
|
ON/OFF Charge |
|
Platform Power Management |
|
Smart Backup |
|
Smart Keyboard |
|
System Information Viewer |
|
USB Blocker |
|
2. Support for Q-Flash |
|
3. Support for Xpress Install |
|
|
|
|
|
1. Norton® Internet Security (OEM version) |
|
2. Realtek® 8118 Gaming LAN Bandwidth Control Utility |
|
|
|
|
|
1. Support for Windows 10 64-bit |
|
|
|
|
|
1. Micro ATX Form Factor; 22.6cm x 17.4cm |
|
|
|
|
|
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. |
|
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
