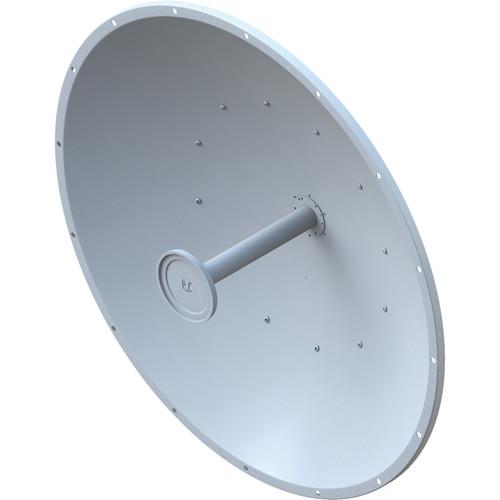

5 GHz airFiber Dish, 34 dBi, Slant 45

$1126800
u$s1252
IVA incluído.
Nivel de stock: Disponible
Cod: LFAF-5G34-S45
Agregar al Carrito

Contacta para recibir más información

Tel: 4372-9595 WhatsApp +54 9 11 6 745-9595
Hasta 12 cuotas sin interés Ver promociones bancarias
Envíos a todo el país Más información
Pick up en tienda Ver ubicación

AF-5G34-S45 Ubiquiti Networks AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio , 5.1 - 5.8 GHz Frequency Range 34 dBi Gain 42 dB F/B Ratio 1.4:1 Max. VSWR Up to 125 mph Wind Survivability

Ubiquiti Networks AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio

P/N  AF-5G34-S45

Ubiquiti Networks AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio

  •
  • 5.1 - 5.8 GHz Frequency Range
  • 34 dBi Gain
  • 42 dB F/B Ratio
  • 1.4:1 Max. VSWR
  • Up to 125 mph Wind Survivability





Especificaciones



Frequency 5.1-5.8 GHz
Gain 34 dBi
Beamwidth +45°: 3° (3 dB)
-45°: 3° (6 dB)
F/B Ratio 42 dB
Maximum VSWR 1.4:1
Wind Loading 1179 N @ 200 km/h (400 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization Dual-linear
Cross-Pol Isolation 35 dB minimum
ETSI Specification EN 302 326 DN2
Mounting Universal pole mount, airFiber X radio bracket, and weatherproof RF connectors included
Dimensions 41.34 x 41.34 x 16.57" (1050 x 1050 x 421 mm)
Weight 29.76 lb (13.5 kg)
