5Ghz NanoBeam - Airmax -16dBi AC

NBE-5AC-16 Ubiquiti NanoBeam ac High-Performance airMAX Bridge  Frequency  5 GHz , Throughput 450+ Mbps , Range 10+ km , airMAX Technology Atheros MIPS 74Kc, 720 MHz Processor 128MB DDR2, 8MB Flash Memory 1 x 10/100/1000 Ethernet Port airOS Software Power/LAN/WLAN LED Indicators Quick Assembly Versatile Mounting FCC, IC, CE Approved RoHS Compliant

Nivel de stock: Disponible
Cod: LFAN58-NANOBEAM5-16 - AC
$ 2773
u$s 154
Comprar

Financiación

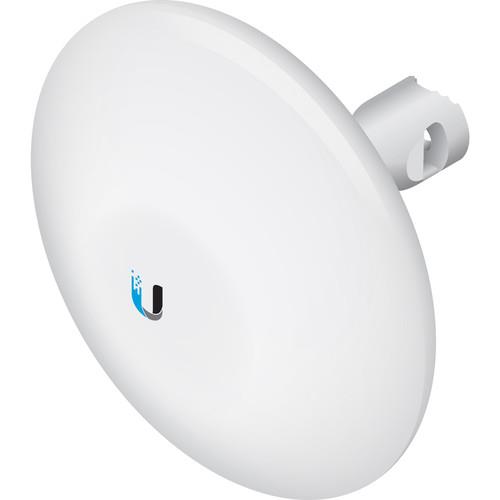

Ubiquiti Networks NBE-5AC-16 NanoBeam ac High-Performance airMAX Bridge

MFR # NBE-5AC-16



Ubiquiti Networks NBE-5AC-16 NanoBeam ac High-Performance airMAX Bridge











Incredible Antenna “Beam” Performance

The form factor of the NanoBeam® ac features the highest gain for its size. The NanoBeam ac’s excellent beam directivity provides the best performance in high-noise environments.







Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.





Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.





















Wall Mount Kit

Use the optional NBE-WMK Wall Mount Kit for enhanced stability when mounting the NanoBeam on a wall.







Model Comparison


NBE-5AC-16
NBE-5AC-16
NBE-5AC-19
NBE-5AC-19
Frequency 5 GHz 5 GHz
Throughput 450+ Mbps 450+ Mbps
Range 10+ km 15+ km





General Specifications

Processor

Atheros MIPS 74Kc, 720 MHz

Memory

128 MB DDR2, 8 MB flash

Networking Interface

1 x 10/100/1000 Ethernet port



Power

Power Supply

24 V, 0.5 A Gigabit PoE

Power Method

Passive PoE (pairs 4, 5+ and 7, 8 return)

Power Consumption

6 W maximum

TX Power Specifications

Modulation: airMAX ac
Data Rate: 1 x BPSK (½)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (½)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (¾)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (½)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (¾)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (2/3)
Average TX: 25 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (¾)
Average TX: 25 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (5/6)
Average TX: 24 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (¾)
Average TX: 22 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (5/6)
Average TX: 22 dBm
Tolerance: ± 2 dB

RX Power Specifications

Modulation: airMAX ac
Data Rate: 1 x BPSK (½)
Sensitivity: -96 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (½)
Sensitivity: -95 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (¾)
Sensitivity: -92 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (½)
Sensitivity: -90 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (¾)
Sensitivity: -86 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (2/3)
Sensitivity: -83 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (¾)
Sensitivity: -77 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (5/6)
Sensitivity: -74 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (¾)
Sensitivity: -69 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (5/6)
Sensitivity: -65 dBm
Tolerance: ± 2 dB



Antenna

Gain

16 dBi

Polarization

Dual linear

Operating Frequency

5150 to 5875 MHz
5725 to 5850 MHz

Wind Loading

21.4 N @ 200 km/h (4.8 lbf @ 125 mph)

Wind Survivability

200 km/hour (125 mph)



LED Indicator Specifications

LEDs

1 x Power
1 x LAN
4 x WLAN

Signal Strength LEDs

Software-adjustable to correspond to custom RSSI levels



Channel Size Support

PtP Mode

10/20/30/40/50/60/80 MHz

PtMP Mode

10/20/30/40 MHz



Environmental

Operating Temperature

-40 to +158°F (-40 to +70°C)

Operating Humidity

5 to 95% (non-condensing)



Tests

Salt Fog Test

IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5

Vibration Test

IEC 68-2-6

Temperature Shock Test

IEC 68-2-14

UV Test

IEC 68-2-5 at 104°F (40°C)
Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test

ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5



Other

Mounting

Pole-mount (kit included), wall-mount

ESD/EMP Protection

Air: ± 24 kV
Contact: ± 24 kV



Compliance and Approvals

Compliance

RoHS

Approvals

FCC, IC, CE



Physical Characteristics

Enclosure

Outdoor UV stabilized plastic

Dimensions

5.51 x 5.51 x 2.13" (13.99 x 13.99 x 5.41 cm)

Weight

0.71 lb (0.32 kg)
