AirFiber, 500+ Mbps Backhaul, 5.1-5.8GHz (AF-5X)

$626976
u$s697
IVA incluído.
Nivel de stock: Disponible
Cod: LFAF-5X
Agregar al Carrito

Contacta para recibir más información

Tel: 4372-9595 WhatsApp +54 9 11 6 745-9595
Hasta 12 cuotas sin interés Ver promociones bancarias
Envíos a todo el país Más información
Pick up en tienda Ver ubicación

AF-5X Ubiquiti Networks airFiber AF-5X 5 GHz Carrier Backhaul Radio , Range: up to 124 mi (200 km) Up to 500+ Mbps Real Throughput Full Band Certification including DFS Operates using the 5 GHz Band Hybrid Division Duplexing (HDD) Low Latency Enhanced Spectral Efficiency Operation in Unlicensed Bands Co-Location GPS Sync & Clean Power Output

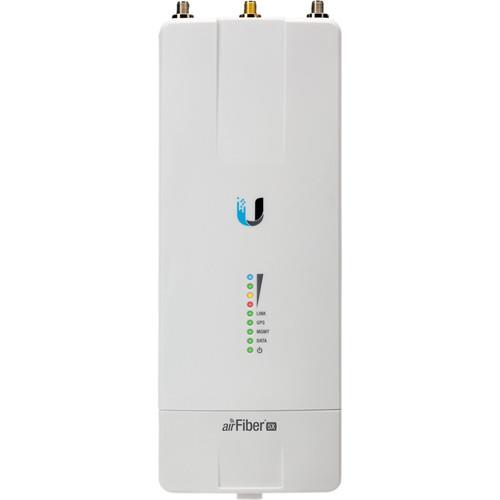

Ubiquiti Networks airFiber AF-5X 5 GHz Carrier Backhaul Radio

P/N  AF-5X-US





  • Range: up to 124 mi (200 km)
  • Up to 500+ Mbps Real Throughput
  • Full Band Certification including DFS
  • Operates using the 5 GHz Band
  • Hybrid Division Duplexing (HDD)
  • Low Latency
  • Enhanced Spectral Efficiency
  • Operation in Unlicensed Bands
  • Co-Location
  • GPS Sync & Clean Power Output





Ubiquiti Networks airFiber AF-5X 5 GHz Carrier Backhaul Radio









Ubiquiti Networks AF-5X-US Specs

Specifications
RF Connectors 2 x RP-SMA Weatherproof (CH0, CH1)
1 x SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24 V, 1 A PoE Gigabit Adapter (included)
Power Method Passive Power over Ethernet
Mounting airFiber X Mount (Rocket Mount compatible)
GPS Pole Mount (included)
Certifications DFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1
Networking Interfaces
Data Port 1 x 10/100/1000 Ethernet Port
Management Port 1 x 10/100 Ethernet Port
System
Processor INVICTUS IC
Maximum Throughput 500+ Mbps
Maximum Range 656,168' / 200,000 m
Encryption 128-bit AES
Operating System airOS F
Wireless Modes Master/Slave
Radio Frequencies
Operating Frequency FCC 15.407: 5150 - 5350 MHz, 5470 - 5850 MHz
IC RSS-210: 5470 - 5600 MHz, 5650 - 5850 MHz
ETSI EN 301 893, EN 302 502: 5470 - 5875 MHz
Other Regions: 5150 - 5950 MHz
Power Max. Conducted TX Power: 26 dBm
(Dependent on regulatory region)
Frequency Accuracy ± 2.5 ppm without GPS synchronization
± 0.2 ppm with GPS synchronization
Channel Bandwidth 10/20/30/40/50 MHz selectable
Programmable uplink and downlink duty cycles
Environmental
Operating Temperature -40 to 131°F / -40 to 55°C
Dimensions & Weight
Dimensions 8.82 x 3.32 x 1.89" / 224.03 x 84.33 x 48.01 mm
Weight 0.77 lb / 0.35 kg
