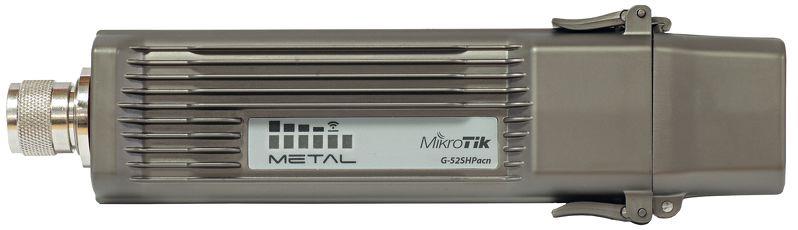

RBMetalG-52SHPacn con fuente

$213580
u$s181
IVA incluído.
Nivel de stock: Disponible
Cod: LFRBMetalG-52SHPacn
Agregar al Carrito

Contacta para recibir más información

Tel: 4372-9595 WhatsApp +54 9 11 6 745-9595
Hasta 12 cuotas sin interés Ver promociones bancarias
Envíos a todo el país Más información
Pick up en tienda Ver ubicación

RBMetalg-52SHPacn-US - MikroTik Metal 52 802.11ac Gigabit Dual Band Access Point , Preocesador  720MHz network processor • Memory: 64MB  • LAN ports: 1 x 10/100Mbs Fast Ethernet port with Auto-MDI/X, L2MTU frame size up to 2030 • Operating Frequency: 5GHz: 5150 - 5250 MHz, 5725 - 5835 MHz; 2.4GHz: 2412-2462 MHz  • Wireless: 802.11b/g/n/ac • Operating System: RouterOS Level 4

Metal 52 ac

Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.

The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 ac/n/a for 5GHz).

We have two versions available.

- RBMetalG-52SHPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBMetalG-52SHPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range.



Product specifications

Details
Product code RBMetalG-52SHPacn
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 64 MB
10/100/1000 Ethernet ports 1
Wireless chip model QCA-9889
Wireless standards 802.11a/b/g/n/ac
Supported input voltage 10 V - 30 V
PoE in Yes
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 215x60x38mm
Operating System RouterOS
Tested ambient temperature -40°C .. +70°C tested
License level 4
CPU QCA9556
Max Power consumption 11W
Number of chains 1
Storage type FLASH
Storage size 16 MB
Suggested price $119

Wireless specifications

5 GHz
  Transmit power (dBm) Receive Sensitivity Transmit power (mW)
6MBit/s 31 -93 1259
54MBit/s 27 -78 501
MCS0 30 -93 1000
MCS7 26 -74 398
MCS9 22 -69 158
2.4 GHz
  Transmit power (dBm) Receive Sensitivity Transmit power (mW)
1MBit/s 31 -97 1259
11MBit/s 31 -91 1259
6MBit/s 31 -93 1259
54MBit/s 28 -77 631
MCS0 31 -93 1259
MCS7 27 -72 501

wireless parameters may be limited in software, depending on your local regulatory limitations

Included parts

Performance test results

RBMetalG-52SHPacn QCA9556 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 233.1 954.8 576.7 295.3
Bridging 25 bridge filter rules 81.2 986.1 123.7 506.7 117.8 60.3
Routing none (fast path) 81.2 986.1 233.1 954.8 454.8 232.9
Routing 25 simple queues 81.2 986.1 152.6 625 137.2 70.2
Routing 25 ip filter rules 69.4 842.8 66.3 271.6 68.7 35.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
