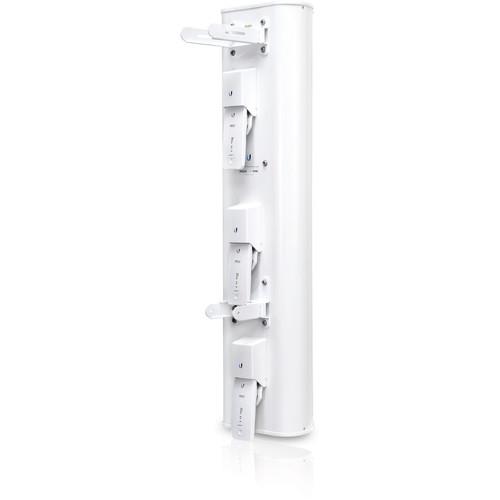

5 GHz airPrism Sector, 90, High Density

AP-5AC-90-HD Ubiquiti airPRISM 5 GHz 3x30° HD Sector Antenna ,5.15 - 5.85 GHz Frequency Range 22 dBi Gain Dual-Linear Polarization 6 x RP-SMA Connectors Up to 125 mph Wind Loading/Survivability

Nivel de stock: Disponible
Cod: LFAP-5AC-90-HD
$ 19371
u$s 1073
Comprar

Financiación

Ubiquiti Networks airPRISM 5 GHz 3x30° HD Sector Antenna

 MFR # AP-5AC-90-HD



Ubiquiti Networks airPRISM 5 GHz 3x30° HD Sector Antenna







Frequency Range 5.15 - 5.85 GHz
Gain 22 dBi
Hpol Beamwidth 3 x 30° (6 dB)
Vpol Beamwidth 3 x 30° (6 dB)
Electrical Beamwidth
Electrical Downtilt
Maximum VSWR 1.75:1
Polarization Dual-linear
Cross-Polarization Isolation 30 dB minimum
Interfaces 6 x RP-SMA connectors (weatherproof)
Compatible Radios Rocket5ac Prism, model R5AC-PRISM
Wind Loading 120 lbf @ 125 mph / 534 N @ 200 km/h
Wind Survivability 125 mph / 200 km/h
Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
ETSI Specification EN 302 326 DN2
Certifications CE, FCC, IC
Dimensions 12.70 x 7.93 x 51.18" / 322.6 x 201.5 x 1300.0 mm
Weight 28.9 lb / 13.1 kg
