5Ghz LiteBeam - Airmax -23dBi

AN58-LBE-M5-23 5Ghz LiteBeam - Airmax -23dBi Up to 125 mph Wind Survivability Outdoor UV Stabilized Plastic Included Pole Mounting Kits Supports Passive Power over Ethernet MIPS 74K Processor 64MB Memory 1 x 10/100 Ethernet Ports

Nivel de stock: Disponible
Cod: LFAN58-LBE-M5-23
$ 1419
u$s 82
Comprar

Financiación

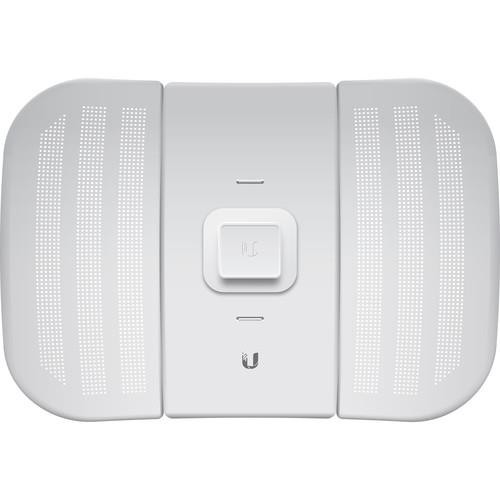

Ubiquiti Networks LBE-M5-23 LiteBeam M5 with InnerFeed Technology

 MFR # LBE-M5-23-US



Ubiquiti Networks LBE-M5-23 LiteBeam M5 with InnerFeed Technology

High-Gain, Directional Antenna

The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.





Compact in Size, Light in Weight

A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.

Physical/Electrical/Environmental

Wind Survivability

125 mph / 200 km/h

Wind Loading

39.76 lbf @ 125 mph / 176.86 N @ 200 km/h

Enclosure Characteristics

Outdoor UV stabilized plastic

Mounting Kit

Pole mounting kit (included)

Max Power Consumption

4 W

Power Supply

24 V, 0.2 A PoE adapter (included)

Power Method

Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)

Operating Temperature

-40 to 158°F / -40 to 70°C

Operating Humidity

5 to 95% non-condensing

Shock and Vibration

ETSI300-019-1.4

ETSI Specification

EN 302 326 DN2



System Information

Processor

MIPS 74K

Memory

64 MB

Networking Interface

1 x 10/100 Ethernet port



Regulatory Approvals

Wireless Approvals

FCC, IC, CE

RoHS Compliance

Yes



Output

Output Power

Output Power: 25 dBm
TX Power Specifications
Data Rate / Avg. TX / Tolerance
802.11a
6 - 24 Mbps 25 dBm ± 2 dB
36 Mbps 24 dBm ± 2 dB
48 Mbps 22 dBm ± 2 dB
54 Mbps 21 dBm ± 2 dB
802.11n/airMAX
MCS0 25 dBm ± 2 dB
MCS1 25 dBm ± 2 dB
MCS2 25 dBm ± 2 dB
MCS3 24 dBm ± 2 dB
MCS4 23 dBm ± 2 dB
MCS5 22 dBm ± 2 dB
MCS6 21 dBm ± 2 dB
MCS7 19 dBm ± 2 dB

RX Power Specifications
Data Rate / Sensitivity / Tolerance
802.11a
6 - 24 Mbps -94 dBm Min. ± 2 dB
36 Mbps -90 dBm ± 2 dB
48 Mbps -86 dBm ± 2 dB
54 Mbps -84 dBm ± 2 dB
802.11n/airMAX
MCS0 -97 dBm ± 2 dB
MCS1 -96 dBm ± 2 dB
MCS2 -93 dBm ± 2 dB
MCS3 -91 dBm ± 2 dB
MCS4 -87 dBm ± 2 dB
MCS5 -84 dBm ± 2 dB
MCS6 -78 dBm ± 2 dB
MCS7 -75 dBm ± 2 dB



Antenna

Operating Frequency

Worldwide: 5150 - 5875 MHz
USA: 5725 - 5850 MHz

Output Power

25 dBm

Gain

23 dBi

Max VSWR

1.5:1



Dimensions & Weight

Dimensions

14.25 x 10.51 x 7.24" / 362 x 267 x 184 mm

Weight

24.11 oz / 750 g



Packaging Info

Package Weight

2.8 lb

Box Dimensions (LxWxH)

11.6 x 5.5 x 4.6"
