Horn-5-90 5 GHz PrismAP Antena 90° para PS-5AC, IS-M5 e IS-5AC

$253588
u$s291
IVA incluído.
Nivel de stock: Disponible
Cod: LFHorn-5-90
Agregar al Carrito

Contacta para recibir más información

Tel: 4372-9595 WhatsApp +54 9 11 6 745-9595
Hasta 12 cuotas sin interés Ver promociones bancarias
Envíos a todo el país Más información
Pick up en tienda Ver ubicación

Ubiquiti Networks PRISMAP-5-90 airMAX ac Beamwidth Sector Isolation Antenna Horn

Ubiquiti Networks PRISMAP-5-90 airMAX ac Beamwidth Sector Isolation Antenna Horn

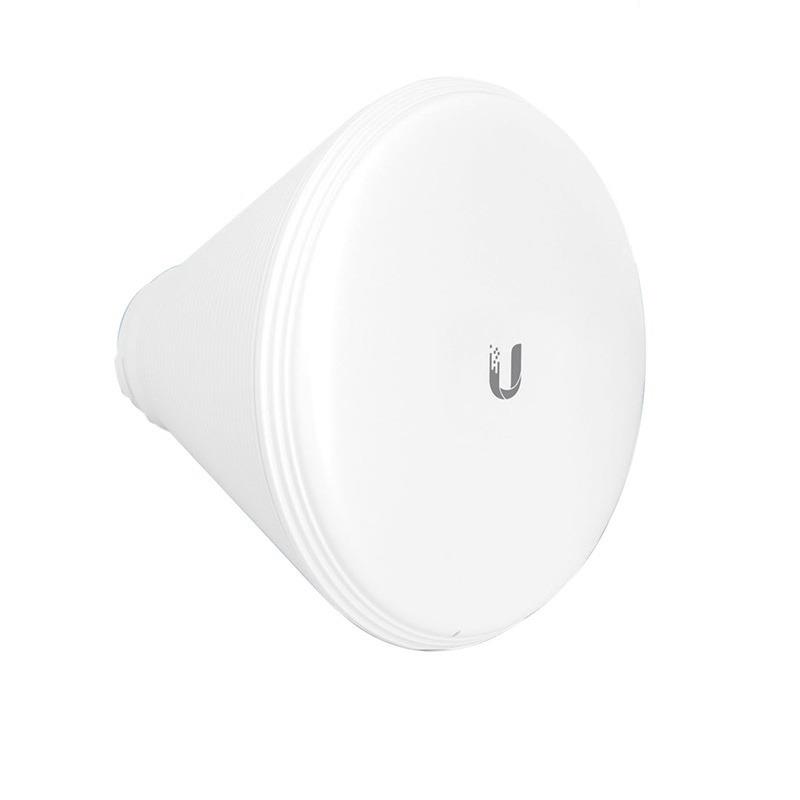

Resultado de imagen para Horn-5-30

Modular Design

The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.



Symmetrical horn antenna

30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.



Asymmetrical horn antennas

60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.





Model Comparison


Horn-5-30
Horn-5-30
Horn-5-45
Horn-5-45
Horn-5-60
Horn-5-60
Horn-5-90
Horn-5-90
Gain 19 dBi 15.5 dBi 16 dBi 13 dBi
Frequency 5.15 - 5.85 GHz 5.15 - 5.85 GHz 5.15 - 5.85 GHz 5.15 - 5.85 GHz
Beam Width 30° 45° 60° 90°
