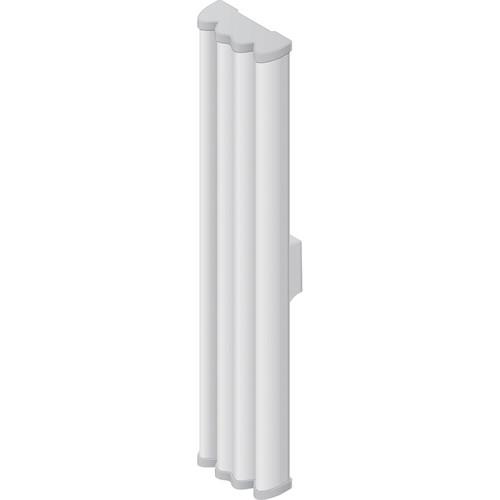

Panel 5 GHz Ubiquiti 5 GHz airMAX AC Sector Antenna, 21 dBi, 60

AM-5AC21-60 Panel 5 GHz Ubiquiti 5 GHz airMAX AC Sector Antenna, 21 dBi, 60°

Nivel de stock: Disponible
Cod: LFAN58-AM-5AC21-60
$ 8521
u$s 472
Comprar

Financiación

Ubiquiti Networks airMAXac Sector 2x2 MIMO BaseStation 5 GHz 21 dBi Antenna

MFR # AM-5AC21-60

Ubiquiti Networks airMAXac Sector 2x2 MIMO BaseStation 5 GHz 21 dBi Antenna





  • 21 dBi Antenna Gain
  • 5 GHz Frequency Band
  • 60° Beamwidth
  • Advanced Noise Immunity
  • Superior Beam Performance
  • Enhanced Scalability of airMAX Networks
  • Improved Signal-to-Noise Ratio
  • Innovative Deflector Design













Breakthrough Design and Performance

The airMAX® ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.







Market-Leading Beam Performance

Compare the diagram of the airMAX® ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.







Industrial-Strength Construction

airMAX® ac Antennas are designed with robust mechanical design for outdoor application use.





Plug and Play Integration

Every airMAX® ac Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.











Model Comparison


AM-5AC21-60
AM-5AC21-60
AM-5AC22-45
AM-5AC22-45
Frequency 5 GHz 5 GHz
Gain 21 dBi 22 dBi











Frequency Band 5.10 - 5.85 GHz
Antenna Gain 21 dBi
Beamwidth HPOL: 60° (6 dBi)
VPOL: 60° (6 dBi)
Electrical: 4°
Electrical Downtilt
Maximum VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 391 N at 200 km/h (88 lbf at 125 mph)
Polarization Dual-linear
Cross-Polarization Isolation 25/30 dB minimum
ETSI Specification EN 302 326 DN2
Dimensions 29.53 x 6.81 x 3.07" (750.00 x 173.00 x 78.00 mm)
Weight 10.58 lb (4.80 kg)





Breakthrough Design and Performance

The airMAX® ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.





Market-Leading Beam Performance

Compare the diagram of the airMAX® ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.





Industrial-Strength Construction

airMAX® ac Antennas are designed with robust mechanical design for outdoor application use.








Plug and Play Integration

Every airMAX® ac Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.



Model Comparison


AM-5AC21-60
AM-5AC21-60
AM-5AC22-45
AM-5AC22-45
Frequency 5 GHz 5 GHz
Gain 21 dBi 22 dBi
