Panel 5 GHz Ubiquiti 5 GHz airMAX AC Sector Antenna, 22 dBi, 45

IVA incluído.
Nivel de stock: Disponible
Cod: LFAM-5AC22-45
Agregar al Carrito

Contacta para recibir más información

Tel: 4372-9595 WhatsApp +54 9 11 6 745-9595
Hasta 12 cuotas sin interés Ver promociones bancarias
Envíos a todo el país Más información
Pick up en tienda Ver ubicación

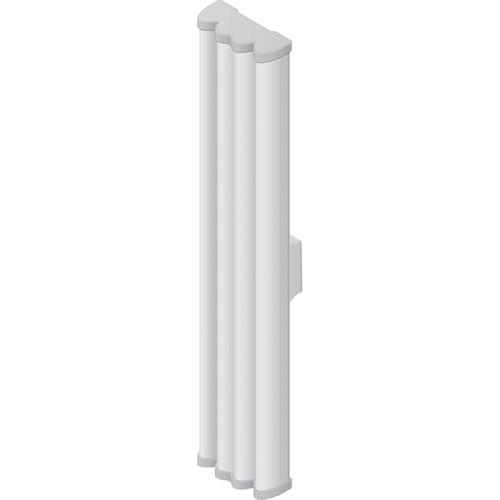

AM-5AC22-45 Panel 5 GHz Ubiquiti 5 GHz airMAX AC Sector Antenna, 22 dBi, 45°

Ubiquiti Networks airMAXac Sector 2x2 MIMO BaseStation 5 GHz 22 dBi Antenna

MFR # AM-5AC22-45


Ubiquiti Networks airMAXac Sector 2x2 MIMO BaseStation 5 GHz 22 dBi Antenna



  • 22 dBi Antenna Gain
  • 5 GHz Frequency Band
  • 45° Beamwidth
  • Advanced Noise Immunity
  • Superior Beam Performance
  • Enhanced Scalability of airMAX Networks
  • Improved Signal-to-Noise Ratio
  • Innovative Deflector Design


Breakthrough Design and Performance

The airMAX® ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.



Market-Leading Beam Performance

Compare the diagram of the airMAX® ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.



Industrial-Strength Construction

airMAX® ac Antennas are designed with robust mechanical design for outdoor application use.




Plug and Play Integration

Every airMAX® ac Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.


Model Comparison

Frequency 5 GHz 5 GHz
Gain 21 dBi 22 dBi
Frequency Band 5.10 - 5.85 GHz
Antenna Gain 22 dBi
Beamwidth HPOL: 45° (6 dBi)
VPOL: 45° (6 dBi)
Electrical: 4°
Electrical Downtilt
Maximum VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 347 N at 200 km/h (78 lbf at 125 mph)
Polarization Dual-linear
Cross-Polarization Isolation 25/30 dB minimum
ETSI Specification EN 302 326 DN2
Dimensions 29.53 x 8.47x 3.70" (750.00 x 215.00 x 94.00 mm)
Weight 13.23 lb (6.00 kg)
