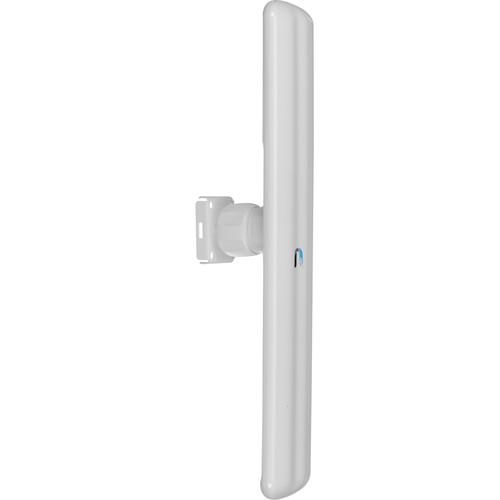

Panel Sectorial con radio integrada LiteBeam 5AC - 16 dBi -120

LBE-5AC16120 Ubiquiti  LiteBeam 5 GHz airMAX , Up to 125 mph Wind Survivability Outdoor UV Stabilized Plastic Included Pole Mounting Kits Supports Passive Power-over-Ethernet MIPS 74K Processor 64MB Memory 1 x 10/100/1000 Ethernet Port

Nivel de stock: Disponible
Cod: LFAN58-LBE-5AC-16-120
$ 2617
u$s 146
Comprar

Financiación

Ubiquiti Networks LBE-5AC16120-US LiteBeam 5 GHz airMAX Technology Solution

MFR # LBE-5AC16120





Ubiquiti Networks LBE-5AC16120-US LiteBeam 5 GHz airMAX Technology Solution







Wind Survivability 125 mph (200 km/h)
Wind Loading 17.3 lbf @ 125 mph (77 N @ 200 km/h)
Mounting Kit Pole mounting kit (included)
Max Power Consumption 7 W
Power Supply 24 V, 0.5 A Gigabit PoE adapter (included)
Power Method Passive PoE (pairs 4, 5+; 7, 8 return)
Temperature & Humidity Operating temperature: -40 to 158°F (-40 to 70°C)
Operating humidity: 5 to 95% non-condensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection ± 24 KV contact / air
Processor MIPS 74 K
Memory 64 MB
Networking Interface 1 x 10/100/1000 Ethernet port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Output Power Output Power: 25 dBm
Modulation: airMAX ac
TX Power Specifications
  Data Rate            Avg. TX        Tolerance
1x BPSK (½)          25 dBm          ± 2 dB
2x QPSK (½)         25 dBm          ± 2 dB
2x QPSK (¾)         25 dBm          ± 2 dB
4x 16QAM (½)       25 dBm          ± 2 dB
4x 16QAM (¾)       25 dBm          ± 2 dB
6x 64QAM (2/3)     25 dBm          ± 2 dB
6x 64QAM (¾)       24 dBm          ± 2 dB
6x 64QAM (5/6)     23 dBm          ± 2 dB
8x 256QAM (¾)     21 dBm          ± 2 dB
8x 256QAM (5/6)   21 dBm          ± 2 dB
RX Power Specifications
  Data Rate          Sensitivity     Tolerance
1x BPSK (½)        -96 dBm          ± 2 dB
2x QPSK (½)       -95 dBm          ± 2 dB
2x QPSK (¾)       -92 dBm          ± 2 dB
4x 16QAM (½)     -90 dBm          ± 2 dB
4x 16QAM (¾)     -86 dBm          ± 2 dB
6x 64QAM (2/3)   -83 dBm          ± 2 dB
6x 64QAM (¾)     -77 dBm          ± 2 dB
6x 64QAM (5/6)   -74 dBm          ± 2 dB
8x 256QAM (¾)   -69 dBm          ± 2 dB
8x 256QAM (5/6) -65 dBm          ± 2 dB
Operating Frequency Worldwide: 5150 - 5875 MHz
USA: 5725 - 5850 MHz
Gain 16 dBi
Max VSWR 1.5:1
Dimensions 17.81 x 3.10 x 2.14" (452.3 x 78.7 x 54.4 mm)
Weight 14.82 oz (420 g)
