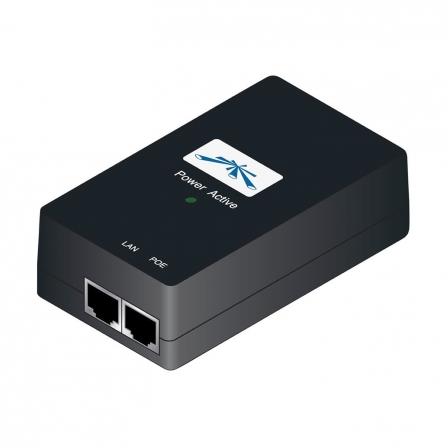

PoE Injector, 50V. 60W. airFiber PoE

PW-POE-50-60W-AR PoE Injector 50V , 1,2 Amper  60W. Puerto Ethernet Gigabite , AirFiber PoE

Nivel de stock: Disponible
Cod: LFPW-POE-50-60W-AR
$ 1503
u$s 38
Comprar

Financiación



Ubiquiti Networks 50V PoE Adapter with Gigabit LAN Port

POE-50-60W





  • For Ubiquiti Networks PoE Devices
  • 50V, 60W of Power



Ubiquiti Networks 50V PoE Adapter with Gigabit LAN Port



El adaptador PoE de 50V con puerto Gigabit LAN de Ubiquiti Networks alimenta una variedad de dispositivos Ubiquiti PoE pertenecientes a las series airFiber, airMAX, airVision, UniFi y mFi. Este adaptador de 50 V proporciona protección contra sobretensión, pinzamiento, descarga máxima de sobretensiones, corriente máxima de pulso y ataques de ESD.



Dispositivos Ubiquiti airFiber, airMAX, airVision, UniFi y mFi PoE
Protección contra sobretensión, fijación, descarga máxima de sobretensiones, corriente máxima de pulso y ataques de ESD
Proporciona conexión a tierra
Puerto LAN Gigabit





Ubiquiti Networks 50V PoE Adapter with Gigabit LAN Port





Connectors 2 x RJ45 shielded ports
Clamping Protection 11 V data, 60 V power
Maximum Surge Discharge 1500 A (8/20 µS) power
Peak Pulse Current 36 A (10/1000 µS) data
Shunt Capacitance < 5 pf data
Response Time < 1 ns
Powering 4-Pair: Pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)
AC Connector IEC-320 C6
Switching Frequency 65 kHz
Line Regulation ± 1%
Load Regulation ± 3%
Output Ripple 1% max
Efficiency > 85%
Inrush Current < 100 A peak @120 VAC
< 200 A peak @ 230 VAC
Input Current 1.3 A @ 120 VAC
0.75 A @ 240 VAC
Input Voltage 90-260 VAC @ 47-63 Hz
Output Voltage 50 VDC @ 1.2 A
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -22 to 158°F (-30 to 70°C)
Humidity (Non-Condensing) 35-95%
Dimensions 3.97 x 2.36 x 1.3" (10 x 6 x 3.3 cm)
Weight

6.8 oz (192 g)
