EdgePoint Router 6, 5 Ethernet Gigabit y 1 slot para SFP

EP-R6 Ubiquiti Gigabit Router  ,  5 Puertos x 10/100/1000 RJ45 Ports 1 x 1 Gbps SFP Port 24V / 0.7A Passive PoE 880MHz MIPS1004Kc Dual-Core Processor 256MB of 1600 MHz DDR3 RAM Polycarbonate with UV Resistance Fiber Backhaul Capability Speed, Link, Activity, and PoE LEDs

Nivel de stock: Disponible
Cod: LFEP-R6
$ 4174
u$s 231
Comprar

Financiación

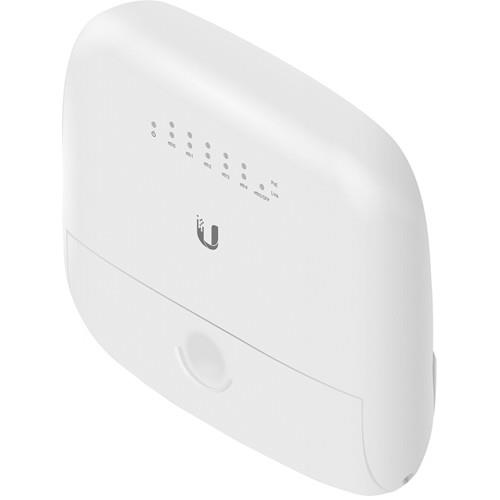

Ubiquiti Networks EP-R6 EdgePoint WISP Gigabit Router

MFR # EP-R6



Ubiquiti Networks EP-R6 EdgePoint WISP Gigabit Router







Ubiquiti Networks EP-R6 EdgePoint WISP Gigabit Router

Ubiquiti Networks EP-R6 EdgePoint WISP Gigabit Router





EP-R6
EP-R8
EP-R8
EP-S16
EP-S16
Function Router Router Switch
Gigabit RJ45 Ports 5 6+2* 16
SFP Ports 1 2* N/A
SFP+ Ports N/A N/A 2
Power Input (1) DC Terminal Block
or
(1) 24V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
PoE Output (5) 24V, 2-Pair (2) 54/24V, 4-Pair
(5) 24V, 2-Pair
(4) 54/24V, 4-Pair
(12) 802.3af/at or 24V, 2-Pair



Purpose-Built for WISP Control

The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX® with fiber backhaul and versatile powering capabilities.



All-in-One Design

A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.





Advanced Routing

Applications

Powerful routing features – such as link balancing – provide redundancy and increased performance for outdoor wireless links.





Enclosure Material Polycarbonate with UV Resistance
Ports Data Ports:
5 x 10/100/1000 RJ45 Ports
1 x 1 Gbps SFP Port
Processor Dual-Core 880 MHz, MIPS1004Kc
System Memory 256 MB DDR3 1600 MHz RAM
Code Storage 256 MB NAND
Button Reset
Pole Mount Yes
Power
Max Power Consumption 7 W (Excludes PoE Output)
Power Input 1 x DC Terminal Block or
1 x RJ45 (eth0)
Power Supply Min. 24 V / 0.3 A (Excludes PoE Output Ports)
DC Input 24 V, 3 A
Passive PoE Input: 1 x 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0
(Do NOT configure eth0 in PoE output mode if you are using a PoE input power source.)
Passive PoE Output: 5 x 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4
Monitoring 1 x DC Terminal Block, Input Power
1 x RJ45, eth0, Input Power
Voltage Range 26 to 16 VDC
Environmental
Operating Temperature -40 to 149°F (-40 to 65°C)
Operating Humidity 10 to 90% Noncondensing
General
Certifications CE, FCC, IC
Dimensions 7.43 x 6.97 x 1.96" (188.6 x 177.1 x 49.8 mm )
Weight 1.33 lbs (605 g)



EP-R6
EP-R8
EP-R8
EP-S16
EP-S16
Function Router Router Switch
Gigabit RJ45 Ports 5 6+2* 16
SFP Ports 1 2* N/A
SFP+ Ports N/A N/A 2
Power Input (1) DC Terminal Block
or
(1) 24V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
PoE Output (5) 24V, 2-Pair (2) 54/24V, 4-Pair
(5) 24V, 2-Pair
(4) 54/24V, 4-Pair
(12) 802.3af/at or 24V, 2-Pair
