EdgePoint Router 8, 6 Ethernet Gigabit y 2 Combo Ethernet/SFP

EP-R8 Ubiquiti Router Gigabit EdgePoint WISP , 6 x 10/100/1000 RJ45 Ports 2 x 10/100/1000 RJ45/SFP Combo Ports 54V or 24V / 1.4A Passive PoE Dual-Core 600 MHz MIPS64 Processor 2GB of DDR3-1600 RAM Die-cast Aluminum Alloy and Polycarbonate Fiber Backhaul Capability Speed, Link, Activity, and PoE LEDs

Nivel de stock: Disponible
Cod: LFEP-R8
$ 16129
u$s 894
Comprar

Financiación

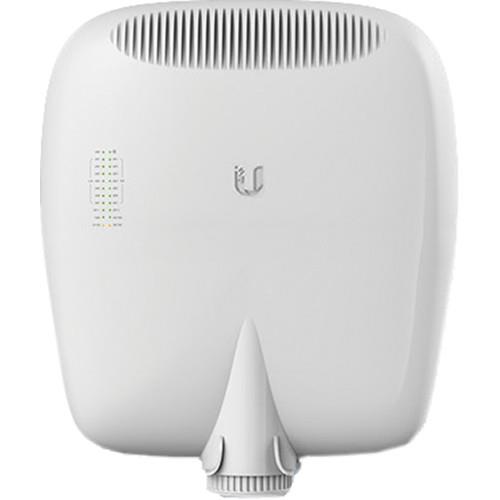

Ubiquiti Networks EP-R8 EdgePoint WISP Gigabit Router

MFR # EP-R8



Ubiquiti Networks EP-R8 EdgePoint WISP Gigabit Router



Purpose-Built for WISP Control

The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX® with fiber backhaul and versatile powering capabilities.

All-in-One Design

A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.





Model Comparison


EP-R6
EP-R6
EP-R8
EP-R8
EP-S16
EP-S16
Function Router Router Switch
Gigabit RJ45 Ports 5 6+2* 16
SFP Ports 1 2* N/A
SFP+ Ports N/A N/A 2
Power Input (1) DC Terminal Block
or
(1) 24V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
PoE Output (5) 24V, 2-Pair (2) 54/24V, 4-Pair
(5) 24V, 2-Pair
(4) 54/24V, 4-Pair
(12) 802.3af/at or 24V, 2-Pair











Enclosure Material Die-cast Aluminum Alloy and Polycarbonate with UV Resistance
Ports 1 x RJ45 Serial Port
1 x RJ 45 PoE In Port
Data Ports:
6 x 10/100/1000 RJ45 Ports
2 x 10 /100/1000 RJ45/SFP Combination Ports
Processor Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory 2 GB DDR3 1600 MHz RAM
Code Storage 4 GB
Button Reset
LEDs System Power
eth0 Speed/Link/Activity
eth1 to eth7 Speed/Link/Activity, PoE
SFP Speed/Link/Activity
Pole Mount Yes
Wall Mount Yes
Power
Max Power Consumption 40 W (Excludes PoE Output)
Power Input 1 x DC Terminal Block or
1 x RJ45 (PoE In and eth0)
Power Supply Min. 54 V / 0.8 A (Excludes PoE Output Power)
DC Input 54 VDC, 6 A
Passive PoE Input:
2 x 54 V / 1.5 A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In (PoE In is DC Only, No Data)

Output:
2 x 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2
5 x 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7
Monitoring 1 x DC Terminal Block, Input Power
1 x RJ45, PoE In and eth0, Input Power
Voltage Range 56 to 42 VDC
Environmental
Operating Temperature -40 to 149°F (-40 to 65°C)
Operating Humidity 10 to 90% Noncondensing
General
Certifications CE, FCC, IC
Dimensions With Wall-Mount: 12.86 x 15.07 x 4.15" (326.6 x 382.7 x 105.5 mm)
Without Wall-Mount: 12.86 x 15.07 x 3.50" (326.6 x 382.7 x 88.8 mm)
Weight With Wall-Mount: 8.38 lbs (3.8 kg)
Without Wall-Mount: 7.5 lbs (3.4 kg)
