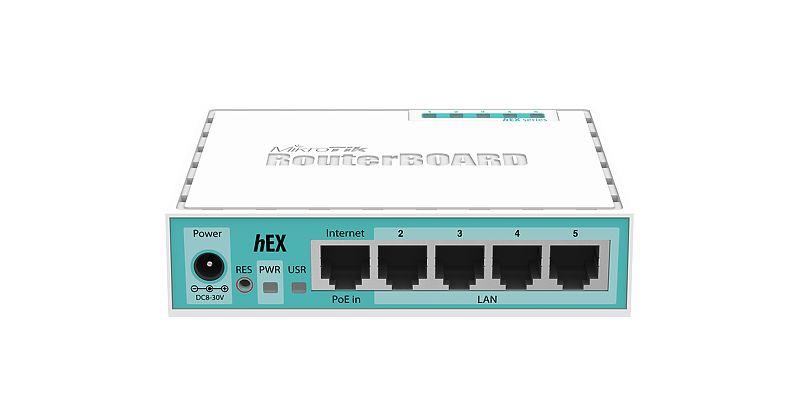

RB750 Gr3 (hEX) RouterBoard, 5 Puertos Gigabit Ethernet, 1 Puerto USB, versión 3
RB750 Gr3 (hEX)
RouterBoard, 5 Gigabit Ethernet, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4
hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the hEX brings several improvements in performance.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM, capable of all the advanced configurations that RouterOS supports.
IPsec Hardware encryption (~470Mbps) and dude server package is supported, microSD slot on it also provides improved r/w speed for database storage on microSD card.
Product specifications
|
Details |
|
Product code |
RB750Gr3 |
|
CPU nominal frequency |
880 MHz |
|
CPU core count |
2 |
|
Size of RAM |
256 MB |
|
10/100/1000 Ethernet ports |
5 |
|
Number of USB ports |
1 |
|
Power Jack |
1 |
|
Supported input voltage |
8 V - 30 V |
|
PoE in |
Yes |
|
Voltage Monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Dimensions |
113x89x28mm |
|
Operating System |
RouterOS |
|
Tested ambient temperature |
-30 + 70 C |
|
License level |
4 |
|
CPU |
MT7621A |
|
Max Power consumption |
5W |
|
USB slot type |
USB type A |
|
USB Power Reset |
Yes |
|
Storage type |
FLASH |
|
Storage size |
16 MB |
|
CPU Threads count |
4 |
|
Suggested price |
$59.95 |
Included parts
Ethernet test results
|
RB750Gr3 |
MT7621A (880Mhz) 1G all port test |
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
|
Bridging |
none (fast path) |
162.4 |
1,972.2 |
443.7 |
1,817.4 |
1039.1 |
532.0 |
|
Bridging |
25 bridge filter rules |
162.4 |
1,972.2 |
168.1 |
688.5 |
174.3 |
89.2 |
|
Routing |
none (fast path) |
162.4 |
1,972.2 |
444.4 |
1,820.3 |
1035.0 |
529.9 |
|
Routing |
25 simple queues |
162.4 |
1,972.2 |
179.6 |
735.6 |
171.4 |
87.8 |
|
Routing |
25 ip filter rules |
92.9 |
1,128.2 |
94.1 |
385.4 |
93.8 |
48.0 |
-
All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
-
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
-
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
-
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
-
24V 0.38A power adapter
