Routerboard 750UPr2 - hEX POE Lite con FUENTE

SBC-RB750UPr2 Routerboard 750UPr2 - hEX POE Lite con FUENTE , Procesador  QCA9531  1 Core 650MHz • RAM: 64MB • Ethernet ports: 5 x 10/100 • PoE in: Yes • Supported input voltage: 6 - 30 V • Power output: On ports 2-5, Ourput: 1A max per port; 2A max total • PCB temperature monitor: Yes • Voltage monitor: Yes • Current monitor: Yes • USB slot Yes • License level: 4 • Operating System: RouterOS • Max Power consumption: 3W

Nivel de stock: Disponible
Cod: LFSBC-RB750UPr2
$ 2127
u$s 118
Comprar

Financiación

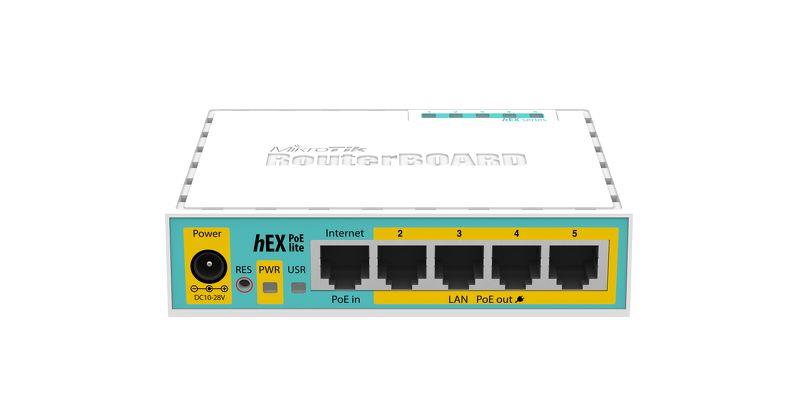

hEX PoE lite

hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output.

Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.

Product specifications

Details
Product code RB750UPr2
CPU nominal frequency 650 MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 5
Number of USB ports 1
Power Jack 1
PoE in Yes
Supported input voltage 6 V - 30 V
PoE out Yes
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 113x89x28mm
Operating System RouterOS
Tested ambient temperature -30 + 70 C
License level 4
Current Monitor Yes
CPU QCA9531
Max Power consumption 3W
USB slot type USB type A
Storage type FLASH
Storage size 16 MB
Suggested price $59.95

Included parts

Performance test results

RB750UPr2 QCA9531 (650Mhz) 100M all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 40.6 493.0 117.4 480.9 217.0 111.1
Bridging 25 bridge filter rules 40.6 493.0 70.1 287.1 70.9 36.3
Routing none (fast path) 40.6 493.0 117.4 480.9 200.8 102.8
Routing 25 simple queues 40.6 493.0 79.6 326.0 90.8 46.5
Routing 25 ip filter rules 40.6 493.0 42.2 172.8 43.2 22.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
