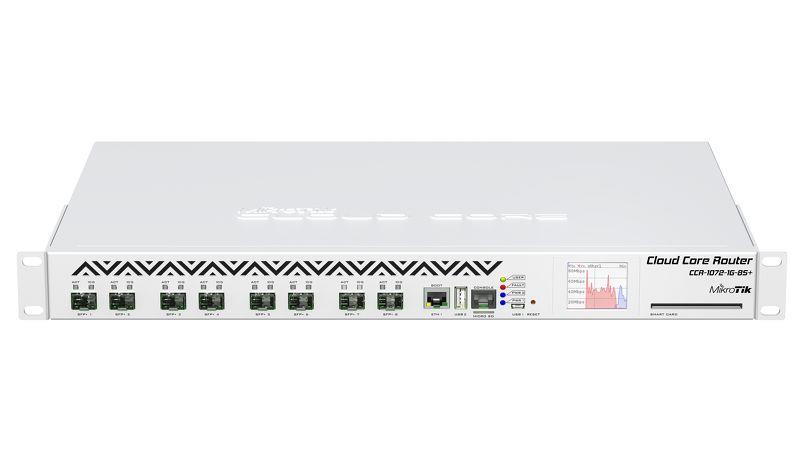

CCR1072-1G-8S+
1U rackmount, 1x Gigabit Ethernet, 8xSFP+ cages, LCD, 72 cores x 1GHz CPU, 16GB RAM, up to 120 million packets per second, 80Gbps throughput, RouterOS L6
Nuestro nuevo enrutador insignia, el CCR1072, está alimentado por una CPU Tilera 72 core, cada núcleo tiene una velocidad de 1 GHz, y para utilizar completamente esta potencia, el CCR1072 está equipado con ocho puertos 10G SFP + conectados de forma independiente y un solo puerto Ethernet para fines de administración.
La unidad viene equipada con RouterOS L6 instalado, 16 GB de memoria RAM ECC incorporada, pantalla LCD a color con pantalla táctil, dos fuentes de alimentación extraíbles (hotplug) para redundancia, ranura para tarjeta inteligente, microUSB, USB de tamaño normal, microSD y 2x ranuras M.2 para almacenamiento adicional .
Gracias al exclusivo procesador de 72 núcleos y los puertos que están conectados directamente a la CPU, CCR1072 es capaz de más de 120 millones de paquetes por segundo rendimiento.
Product specifications
|
Details |
|
Product code |
CCR1072-1G-8S+ |
|
CPU nominal frequency |
1 GHz |
|
CPU core count |
72 |
|
Size of RAM |
16 GB |
|
Architecture |
TILE |
|
10/100/1000 Ethernet ports |
1 |
|
Memory Cards |
3 |
|
Number of USB ports |
2 |
|
Memory card type |
microSD, 2x M.2 |
|
Supported input voltage |
12 V - 12 V |
|
Voltage Monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
CPU temperature monitor |
Yes |
|
Dimensions |
443x315x40mm |
|
Operating System |
RouterOS |
|
Tested ambient temperature |
-20C .. +60C |
|
License level |
6 |
|
Current Monitor |
Yes |
|
CPU |
TLR4-07280DG-10CE |
|
Max Power consumption |
125W |
|
SFP+ ports |
8 |
|
USB slot type |
USB type A |
|
Serial port |
RJ45 |
|
Storage type |
NAND |
|
Storage size |
128 MB |
|
Suggested price |
$3050 |
Included parts
Performance test results
|
CCR1072-1G-8S+ |
Tile 72 Core (1200Mhz, DDR1333) Max possible throughput |
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
|
Bridging |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
119,047.6 |
60,952.4 |
|
Bridging |
25 bridge filter rules |
6,130.5 |
74,448.8 |
8,192.7 |
33,557.3 |
10,339.5 |
5,293.8 |
|
Routing |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
86,507.0 |
44,291.6 |
|
Routing |
25 simple queues |
6,502.0 |
78,960.3 |
12,370.4 |
50,669.2 |
13,474.2 |
6,898.8 |
|
Routing |
25 ip filter rules |
4,667.6 |
56,683.3 |
5,985.1 |
24,515.0 |
5,873.8 |
3,007.4 |
|
CCR1072-1G-8S+ |
Tile 72 Core (1200Mhz, DDR1600) Max possible throughput |
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
|
Bridging |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
119,047.6 |
60,952.4 |
|
Bridging |
25 bridge filter rules |
6,502.0 |
78,960.3 |
9,099.2 |
37,270.3 |
10,432.3 |
5,341.3 |
|
Routing |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
94,668.4 |
48,470.2 |
|
Routing |
25 simple queues |
6,502.0 |
78,960.3 |
13,500.0 |
55,296.0 |
13,683.5 |
7,006.0 |
|
Routing |
25 ip filter rules |
5,247.6 |
63,726.9 |
6,125.5 |
25,090.0 |
6,104.0 |
3,125.2 |
|
CCR1072-1G-8S+ |
Tile 72 Core (1000Mhz, DDR1333) Max possible throughput |
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
|
Bridging |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
98,801.0 |
50,586.1 |
|
Bridging |
25 bridge filter rules |
5,033.3 |
61,124.4 |
7,149.8 |
29,285.6 |
8,682.1 |
4,445.2 |
|
Routing |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
73,061.0 |
37,407.2 |
|
Routing |
25 simple queues |
6,502.0 |
78,960.3 |
10,980.3 |
44,975.3 |
11,368.2 |
5,820.5 |
|
Routing |
25 ip filter rules |
4,125.6 |
50,101.3 |
5,051.5 |
20,690.9 |
4,999.0 |
2,559.5 |
|
CCR1072-1G-8S+ |
Tile 72 Core (1000Mhz, DDR1600) Max possible throughput |
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
|
Bridging |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
98,873.5 |
50,623.2 |
|
Bridging |
25 bridge filter rules |
5,764.8 |
70,007.7 |
8,240.2 |
33,751.9 |
8,866.3 |
4,539.5 |
|
Routing |
none (fast path) |
6,502.0 |
78,960.3 |
18,790.0 |
76,963.8 |
76,201.0 |
39,014.9 |
|
Routing |
25 simple queues |
6,502.0 |
78,960.3 |
11,073.5 |
45,357.1 |
11,444.4 |
5,859.5 |
|
Routing |
25 ip filter rules |
4,664.7 |
56,648.1 |
5,200.3 |
21,300.4 |
5,321.0 |
2,724.4 |
-
All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
-
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
-
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
-
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IEC cord
Rackmount ears
Screw and feet kit (K10)
