RouterBoard CRS212-1 G-1 OS-1S+IN 1 Ethernet Gigabit. 10 slots p/SFP y 1 slot p/SFP+ (no rackeable)

$420705
u$s357
IVA incluído.
Nivel de stock: Disponible
Cod: LFCRS212-1G-10S-1S+IN
Agregar al Carrito

Contacta para recibir más información

Tel: 4372-9595 WhatsApp +54 9 11 6 745-9595
Hasta 12 cuotas sin interés Ver promociones bancarias
Envíos a todo el país Más información
Pick up en tienda Ver ubicación

CRS212-1G-10S-1S+IN - MikroTik Cloud Router 1x Gigabit port 10x SFP 1X SFP+ Layer3 Switch , Procesador Qualcomm Atheros 8519 400MHz • Memory: DDR2 64MB • Etherne:t 1x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X • SFP: 1x 10G SFP+ cage, 10x SFP cages (Mini-GBIC; SFP+ module not included), DDMI support. • Storage: 128MB Onboard NAND with multiple OS partition support • Serial port: 1x RJ45 serial port • Extras: Reset switch; beeper; voltage and temperature monitoring, touchscreen LCD • Power options: 8-30V, 24V 0.8A PSU included • Power consumption: 20W • Case dimensions: 200x144x47mm • Temperature: -35C to +65C tested • OS: MikroTik RouterOS v6, Level 5 license

CRS212-1G-10S-1S+IN

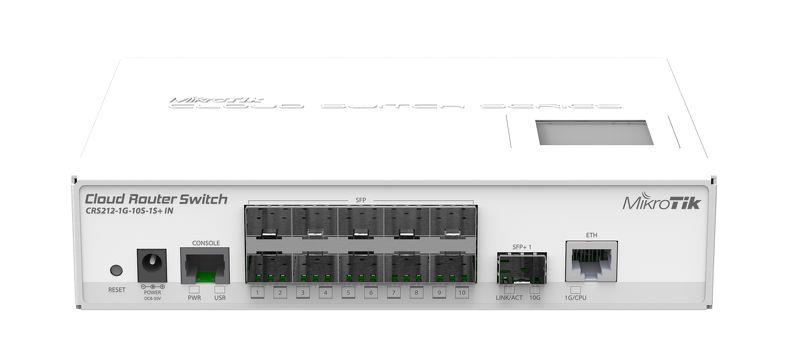

Cloud Router Switch 212-1G-10S-1S+IN is new “small size low cost” member of our CRS series. It comes with one Gigabit Ethernet RJ45 port, ten SFP cages and one 10G SFP+ cage, as well as LCD panel and serial port (RJ45). Product includes indoor desktop case and power supply. Special ears are provided for mounting the unit in rack.

Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.



Product specifications

Details
Product code CRS212-1G-10S-1S+IN
CPU nominal frequency 400 MHz
CPU core count 1
Size of RAM 64 MB
10/100/1000 Ethernet ports 1
Power Jack 1
Supported input voltage 8 V - 30 V
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 200x144x47mm
Operating System RouterOS
Tested ambient temperature -35C to +35C tested
License level 5
Current Monitor Yes
CPU QCA8519
Max Power consumption 20W
SFP ports 10
SFP+ ports 1
Serial port RJ45
Storage type NAND
Storage size 128 MB
Suggested price $219.00

Included parts

Switching results

CRS212-1G-10S-1S+IN
Mode Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 31,250.0 16,000.0 4,934.2 20,210.5 1,706.8 20,726.9
Switching Non blocking Layer 2 capacity 31,250.0 32,000.0 4,934.2 40,421.1 1,706.8 41,453.8
Switching Non blocking Layer 1 throughput 31,250.0 21,000.0 4,934.2 21,000.0 1,706.8 21,000.0
Switching Non blocking Layer 1 capacity 31,250.0 42,000.0 4,934.2 42,000.0 1,706.8 42,000.0

Performance test results

CRS212-1G-10S-1S+IN QCA8519 Max possible throughput test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 26.7 324.2 28.6 117.1 24.5 12.5
Bridging 25 bridge filter rules 21.4 259.9 22.4 91.8 22.2 11.4
Routing none (fast path) 23.0 279.3 23.5 96.3 24.5 12.5
Routing 25 simple queues 19.6 238.0 22.4 91.8 21.0 10.8
Routing 25 ip filter rules 7.9 95.9 10.4 42.6 10.8 5.5
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
