EdgePoint Switch 16,16 Ethernet Gigabitv 2 SFP+

$1434630
u$s1649
IVA incluído.
Nivel de stock: Disponible
Cod: LFEP-S16
Agregar al Carrito

Contacta para recibir más información

Tel: 4372-9595 WhatsApp +54 9 11 6 745-9595
Hasta 12 cuotas sin interés Ver promociones bancarias
Envíos a todo el país Más información
Pick up en tienda Ver ubicación

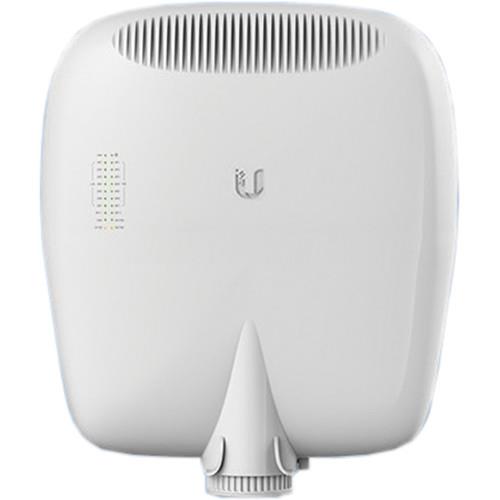

EP-S16 Ubiquiti Switch EdgePoint 16-Port Gigabit PoE-Compliant WISP , 16 x 10/100/1000 RJ45 Ports 2 x 1/10 Gbps SFP+ Ports 54V or 24V /1.4A Passive PoE ARM Cortex-A9 400 MHz Processor 256MB of DDR3 RAM Die-cast Aluminum Alloy and Polycarbonate Fiber Backhaul Capability Speed, Link, Activity, and PoE LEDs Wall and Pole MountableS16

Ubiquiti Networks EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP Switch

MFR # EP-S16





Breakthrough in Tower Deployment

The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

Purpose-Built for WISP Control

The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX® with fiber backhaul and versatile powering capabilities.

All-in-One Design

A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.

Advanced Routing Applications

Powerful routing features – such as link balancing – provide redundancy and increased performance for outdoor wireless links.

Model Comparison







EP-R6
EP-R6
EP-R8
EP-R8
EP-S16
EP-S16
Function Router Router Switch
Gigabit RJ45 Ports 5 6+2* 16
SFP Ports 1 2* N/A
SFP+ Ports N/A N/A 2
Power Input (1) DC Terminal Block
or
(1) 24V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
PoE Output (5) 24V, 2-Pair (2) 54/24V, 4-Pair
(5) 24V, 2-Pair
(4) 54/24V, 4-Pair
(12) 802.3af/at or 24V, 2-Pair







Enclosure Material Die-cast Aluminum Alloy and Polycarbonate with UV Resistance
Ports 1 x RJ45 Serial Port
Data Ports:
16 x 10/100/1000 RJ45 Ports
2 x 1/10 Gbps SFP+ Ports
Processor ARM Cortex-A9 400 MHz
System Memory 256 MB DDR3 RAM
Code Storage 32 MB
Button Reset
LEDs System Power
1 to 16 Speed/Link/Activity, PoE
SFP Speed/Link/Activity
Pole Mount Yes
Wall Mount Yes
Power
Max Power Consumption 40 W (Excludes PoE Output)
Power Input 1 x DC Terminal Block or
2 x RJ45 (Ports 1 and 2)
Power Supply Min. 54 V / 0.8 A (Excludes PoE Output Power)
DC Input 54 VDC, 6 A
Passive PoE Input:
2 x 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2
(Do NOT configure port 1 or 2 in PoE output mode if you are using PoE input power sources.)

Output:
4 x 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4
12 x 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16
Monitoring 1 x DC Terminal Block, Input Power
2 x RJ45, Ports 1 and 2, PoE Input or Output Power
14 x RJ45, Ports 3 to 16, PoE Output Power
Voltage Range 42 to 56 VDC
Environmental
Operating Temperature -40 to 149°F (-40 to 65°C)
Operating Humidity 10 to 90% Noncondensing
General
Certifications CE, FCC, IC
Dimensions With Wall-Mount: 12.86 x 15.07 x 4.15" (326.6 x 382.7 x 105.5 mm)
Without Wall-Mount: 12.86 x 15.07 x 3.50" (326.6 x 382.7 x 88.8 mm)
Weight With Wall-Mount: 8.38 lbs (3.8 kg)
Without Wall-Mount: 7.5 lbs (3.4 kg)



EP-R6
EP-R8
EP-R8
EP-S16
EP-S16
Function Router Router Switch
Gigabit RJ45 Ports 5 6+2* 16
SFP Ports 1 2* N/A
SFP+ Ports N/A N/A 2
Power Input (1) DC Terminal Block
or
(1) 24V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
(1) DC Terminal Block
or
(2) 54V, 4-Pair
PoE Output (5) 24V, 2-Pair (2) 54/24V, 4-Pair
(5) 24V, 2-Pair
(4) 54/24V, 4-Pair
(12) 802.3af/at or 24V, 2-Pair
