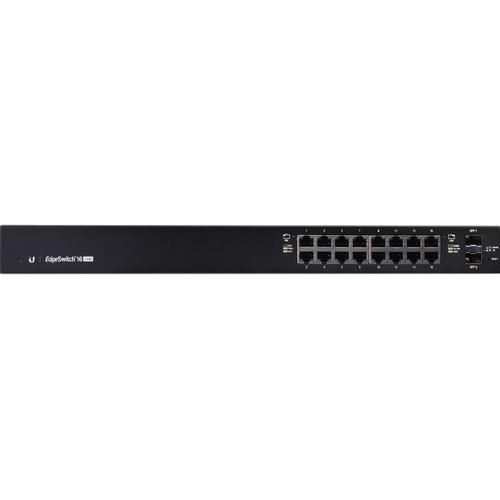

ES-16-150W Ubiquiti Networks EdgeSwitch 16-Port 150-Watt Managed PoE+ Gigabit Switch with SFP , 16 x Gigabit Ethernet Ports 2 x 1 Gbps SFP Ethernet Ports 150 Watt Max. Power Consumption Non-Blocking Throughput Switching Auto-Sensing IEEE 802.3af/at PoE Comprehensive User Interface Rackmount Form Factor Included Rack-Mount Brackets
ES-16-150W
Con una interfaz de usuario completa y soporte para la conectividad de fibra, el conmutador PoE + Gigabit gestionado de 150 vatios y 150 puertos EdgeSwitch con SFP de Ubiquiti Networks es una solución de red completa. Junto con los dos puertos Ethernet SFP a 1 Gbps, puede aprovechar los 16 puertos Gigabit Ethernet que admiten una potencia máxima sobre Ethernet de 34.2 vatios por puerto. El voltaje varía de 50 a 57 voltios con una potencia pasiva máxima sobre la potencia de Ethernet por puerto de 17 vatios. Otras características de red incluyen VLAN, VLAN privada, VLAN de voz, agregación de enlaces, detección de DHCP, IGMP snooping y mucho más. La unidad viene con soportes de montaje en rack.
Total Non-Blocking Throughput | 18 Gbps |
Max Power Consumption | 150 W |
Power Method | 100-240 VAC / 50-60 Hz, Universal Input |
Power Supply | AC/DC, Internal, 150 W DC AC/DC, Internal, 150 W DC |
LEDs |
RJ45 Data Ports PoE, Speed/Link/Activity SFP Data Ports Speed/Link/Activity |
LAN Ports |
16 x 10/100/1000 Mbps RJ45 Ethernet Ports 2 x 1 Gbps SFP Ethernet Ports |
Management Interface | Ethernet in/out band |
Certifications | CE, FCC, IC |
Rackmount | Yes, 1U high |
ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
Operating Temperature | 23 to 104°F (-5 to 40°C) |
Operating Humidity | 5 to 95% non-condensing |
Shock and Vibration | ETSI300-019-1.4 Standard |
PoE |
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24 VDC Passive PoE (Pins 4, 5+; 7, 8-) Max. PoE+ Wattage per Port by PSE 34.2 W Voltage Range 802.3at Mode 50-57 V Max. Passive PoE Wattage per Port 17 W 24 V Passive PoE Voltage Range 20-27 V |
Dimensions | 17.4 x 1.7 x 8.7" (443 x 43 x 221 mm) |
Weight |
With Mount Brackets: 6.4 lb (2.9 kg) Without Mount Brackets: 6.2 lb (2.8 kg) |
Packaging Info | |
---|---|
Package Weight | 8.1 lb |
Box Dimensions (LxWxH) | 21.3 x 10.5 x 3.0" |
