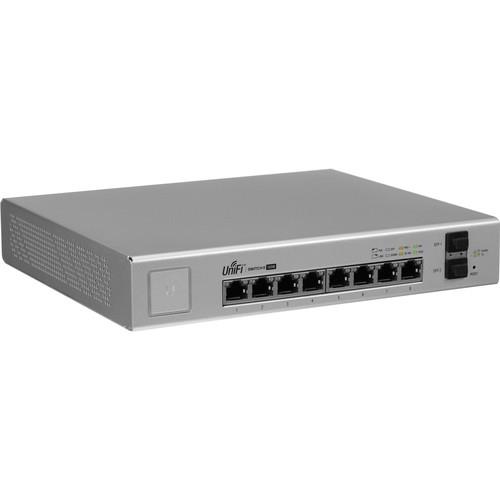

UniFiSwitch 8-Port 150W

US-8-150W Ubiquiti UniFi Managed PoE+ Gigabit 8 Port Switch with SFP (150 W) ,Process All Ports at Line Rate / No Loss Up to 10 Gbps Non-Blocking Throughput 20 Gbps Switching Capacity 150 W Maximum Power Consumption Custom Settings per Port 2 SFP Ports - Up to 1 Gbps Fiber Uplinks Auto-Sensing IEEE 802.3af/at 24V Passive PoE 14.88 Mpps Forwarding Rate UniFi SDN Platform Seamless Integration

Nivel de stock: Disponible
Cod: LFUS-8-150W
$ 7405
u$s 410
Comprar

Financiación

Ubiquiti Networks UniFi Managed PoE+ Gigabit 8 Port Switch with SFP (150 W)

MFR # US-8-150W



Ubiquiti Networks UniFi Managed PoE+ Gigabit 8 Port Switch with SFP (150 W)

  • Process All Ports at Line Rate / No Loss
  • Up to 10 Gbps Non-Blocking Throughput
  • 20 Gbps Switching Capacity
  • 150 W Maximum Power Consumption
  • Custom Settings per Port
  • 2 SFP Ports - Up to 1 Gbps Fiber Uplinks
  • Auto-Sensing IEEE 802.3af/at
  • 24V Passive PoE
  • 14.88 Mpps Forwarding Rate
  • UniFi SDN Platform Seamless Integration



Ubiquiti Networks UniFi Managed PoE+ Gigabit 8 Port Switch with SFP (150 W)







Total Non-Blocking Throughput 10 Gb/s
Switching Capacity 20 Gb/s
Forwarding Rate 14.88 Mp/s
Maximum Power Consumption 150 W
Power Method 100 to 240 VAC, 50 to 60 Hz, Universal Input
Power Supply AC/DC, Internal, 150 W DC
LEDs RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity
Ethernet Networking Interfaces 8 x 10/100/1000 Mb/s RJ45 Ethernet Ports
2 x 1 Gb/s SFP Ethernet Ports
Management Interface Ethernet in-band
Certifications CE, FCC, IC
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Shock and Vibration ETSI300-019-1.4 Standard
PoE POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24 VDC Passive PoE (Pins 4, 5+; 7, 8-) Maximum PoE+ Wattage per Port by PSE: 34.2 W
Voltage Range 802.3at Mode, 50 to 57 V
Maximum PoE Wattage Per Data Port 17 W
Voltage Range 20 to 27 V
Operating Temperature 23 to 104°F (-5 to 40°C)
Operating Humidity 5 to 95%, non-condensing
Dimensions 8.03 x 1.69 x 9.25" / 204 x 43 x 235 mm
Weight 3.75 lb / 1.70 kg
